500W Precision Mini Metal Lathe, 180 * 350mm Benchtop Metal Lathe With 3-Jaw Chuck, 2500RPM Speed, Milling Machine For Various Metal Turning

Product parameters:Workpiece rotation diameter on lathe: 180mm/7.09inWorkpiece length: 350mm/13.78inSpindle through hole diameter: 20mmSpindle inner hole taper: MT3Tail shaft hole taper: MT2Slide plate lateral travel: 65mm/2.56inTool holder plate travel: 55mm/2.16inProcessing thread range ：Metric: 0.4-2.0mm (10 specifications), Im: 12-52T (18 specifications)Motor output power: 500WSpindle speed range (stepless speed): 100-2500±10%rpmLathe overall dimensions (LxWxH): 800*300*300mm/31.5*11.8*11.8inPackaging dimensions (LxWxH): 900*420*390mm/35.4*16.5*15.35inNet weight/gross weight: 50/55kg/110/121lbPacking list:1 x Mini Metal Lathe1 x 80mm three-jaw self-centering chuck1 x Chuck transparent protective cover1 x Tool holder transparent protective cover1 set Metal exchange gear1 x MT2 tailstock with ejector1 set Chuck wrench1 set Hexagon wrench1 x spindle wrench2 x 5.5x7mm double-ended wrenches1 x 2A fuse1 x instruction manual

• 【Mini Lathe】: Size: 800*300*300mm/31.5*11.8*11.8in, Motor output power: 500W, Workpiece rotation diameter on lathe ≤180mm/7in, Working length 350mm/11.8in, Spindle through hole diameter 20mm/0.787in, Spindle inner hole taper MT3, Tail shaft hole taper MT2, Tray lateral stroke 65mm/2.56in, Tool holder plate stroke 55mm/2.16in, Packing size 900*420*390mm/35.4*16.5*15.35in, Weight 55kg/121lb
• 【Metal Lathe】: Our metal lathe is made of HT200 rigid cast iron, the lathe shell is painted with baking varnish, and partially painted with color paint, which is rust-proof, anti-oxidation, wear-resistant and has a long service life.
• 【Stepless Speed ​​Variable】: The metal lathe has a variable speed of 100-2500±10%rpm. The speed can be easily changed by simply turning the switch. At the same time, the indicator above will inform you of the in progress.
• 【3-Jaw Chuck】: The mini lathe comes with a 3.15in3-jaw self-centering chuck and a 20mm spindle hole. It can be used to process 0.4-2.0mm (10 specifications) metric threads and 12-52T (18 specifications) im threads, and is widely used in places where precision processing is required and high rotation speeds are achieved.

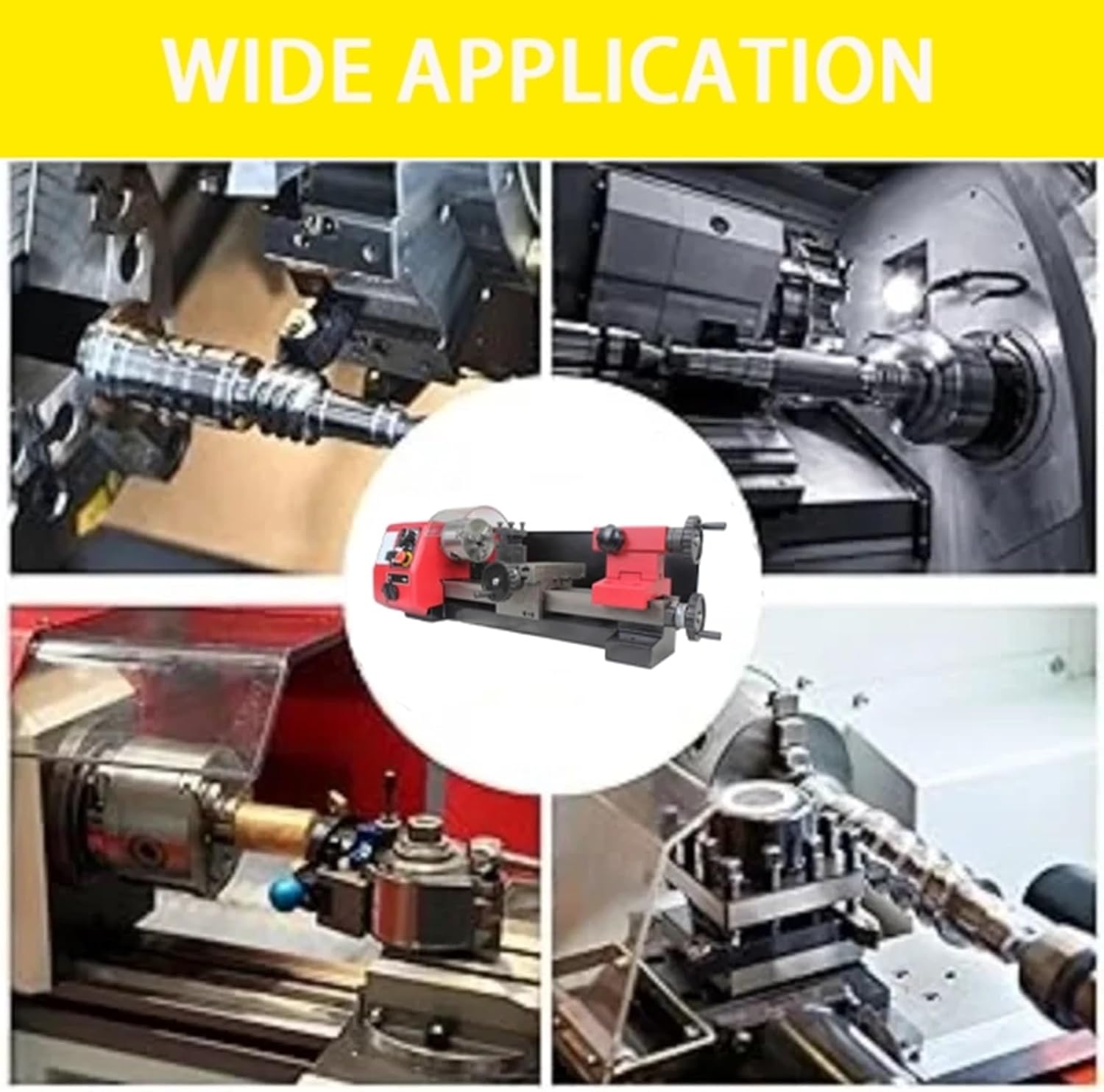

• 【Wide Application】：The lathe can perform precision machining without taking up a lot of space in your workshop, and can make bushings, spindles, prototypes, models, etc.
